LIAN LI Launches Next Generation AIO Liquid Cooling: GALAHAD II TRINITY Series
LIAN LI Industrial Co. Ltd., a leading manufacturer of chassis and PC accessories, has introduced its latest AIO liquid cooling solution, the GALAHAD II TRINITY series. This series includes three models: GALAHAD II TRINITY, GALAHAD II TRINITY SL-INF, and GALAHAD II TRINITY PERFORMANCE.
The TRINITY series offers customization options with three swappable caps for the pump block and 45-degree rotary fittings at the radiator for easy tube orientation. The GALAHAD II TRINITY is available in 240mm and 360mm sizes, featuring pre-installed RGB fans with seamless cable interconnectivity. The GALAHAD II TRINITY SL-INF comes in the same sizes, equipped with pre-installed UNI FAN SL INFINITY fans and a controller. The GALAHAD II TRINITY PERFORMANCE is only available in a 360mm size, featuring pre-installed high-performance LCP fans, a thick radiator with a double wave fin design, and a high-speed pump.

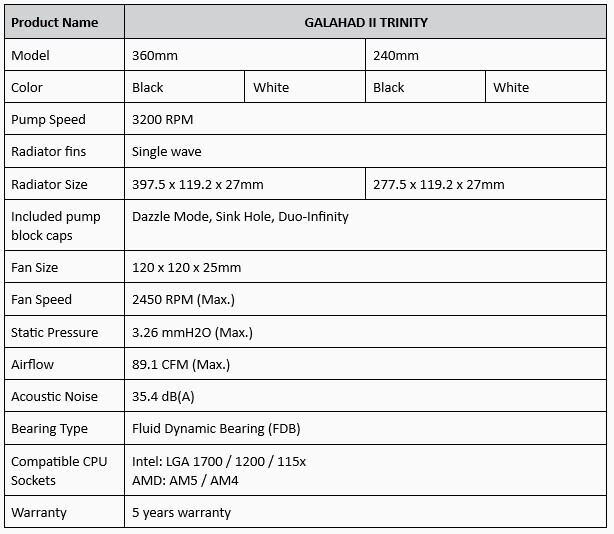

GALAHAD II TRINITY

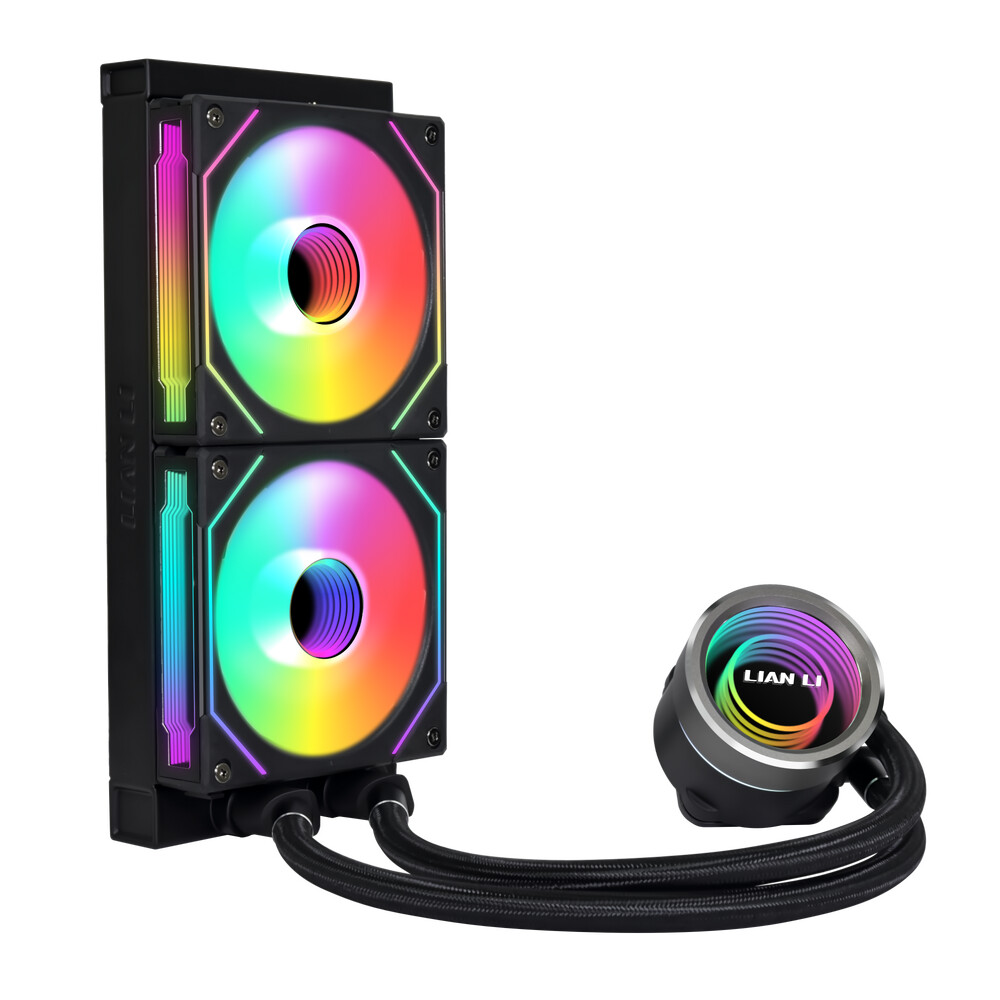

The GALAHAD II TRINITY is available in black and white and comes with ARGB PWM fans that can be daisy-chained using a single short cable hidden inside the fan frame. The 120mm fan is equipped with Fluid Dynamic Bearings for stable and quiet operation. The radiator is 27mm thick and comes in 240mm and 360mm sizes. The pump and fans can be controlled via the motherboard using the included PWM and ARGB cables or directly connected to the AIO pump block for synchronization via L-Connect 3.
GALAHAD II TRINITY SL-INF

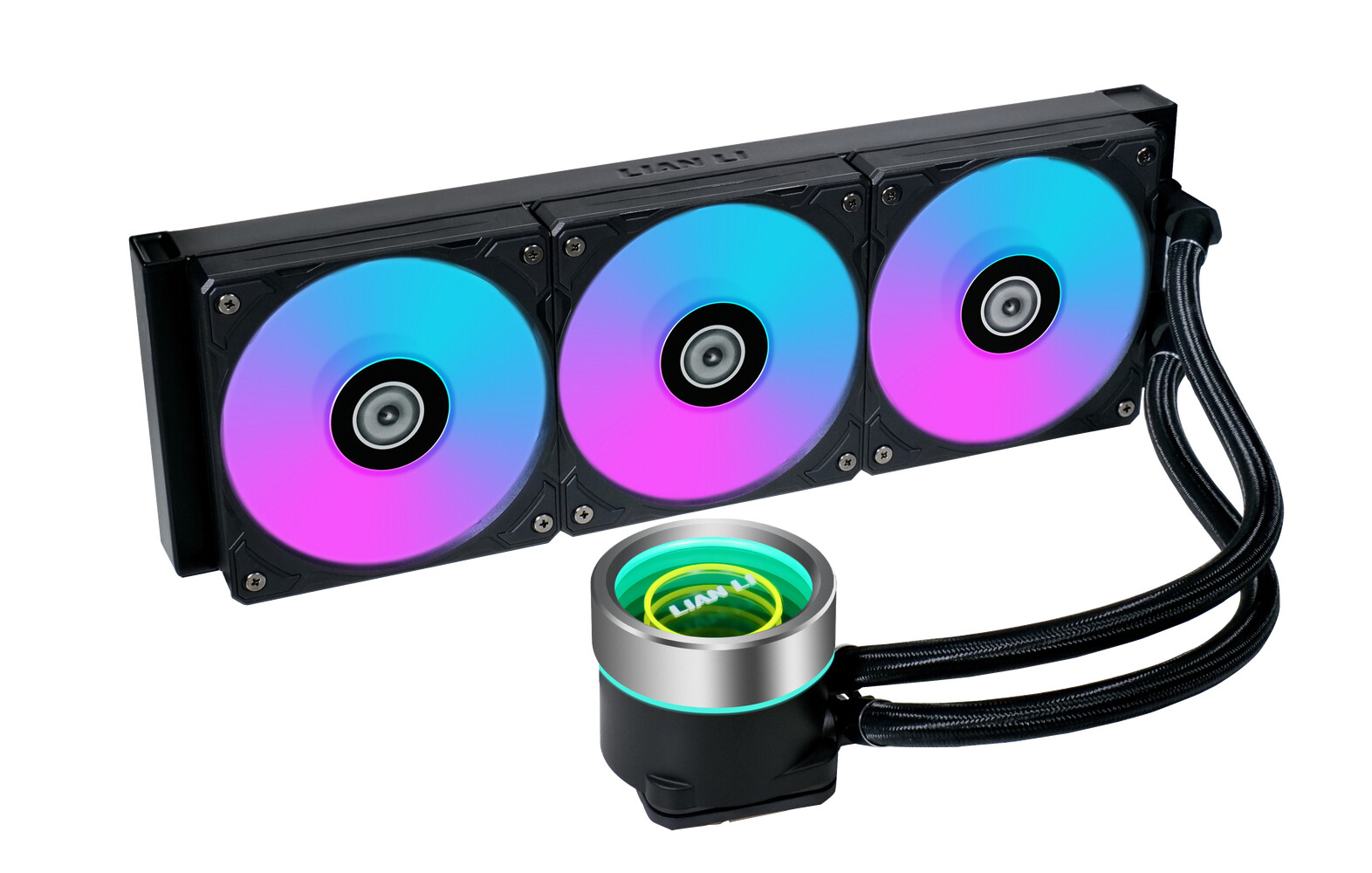

The GALAHAD II TRINITY SL-INF shares the same pump block and radiator options as the GALAHAD II TRINITY. It is available in black and white and comes with pre-installed UNI FAN SL120 INFINITY fans.

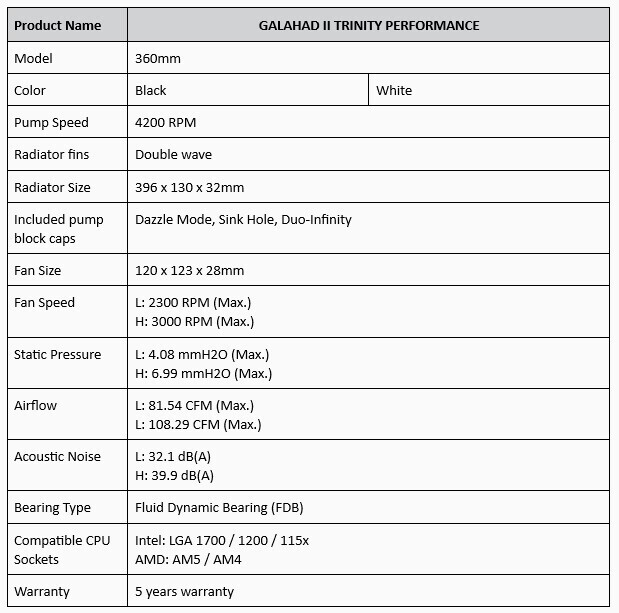

GALAHAD II TRINITY PERFORMANCE

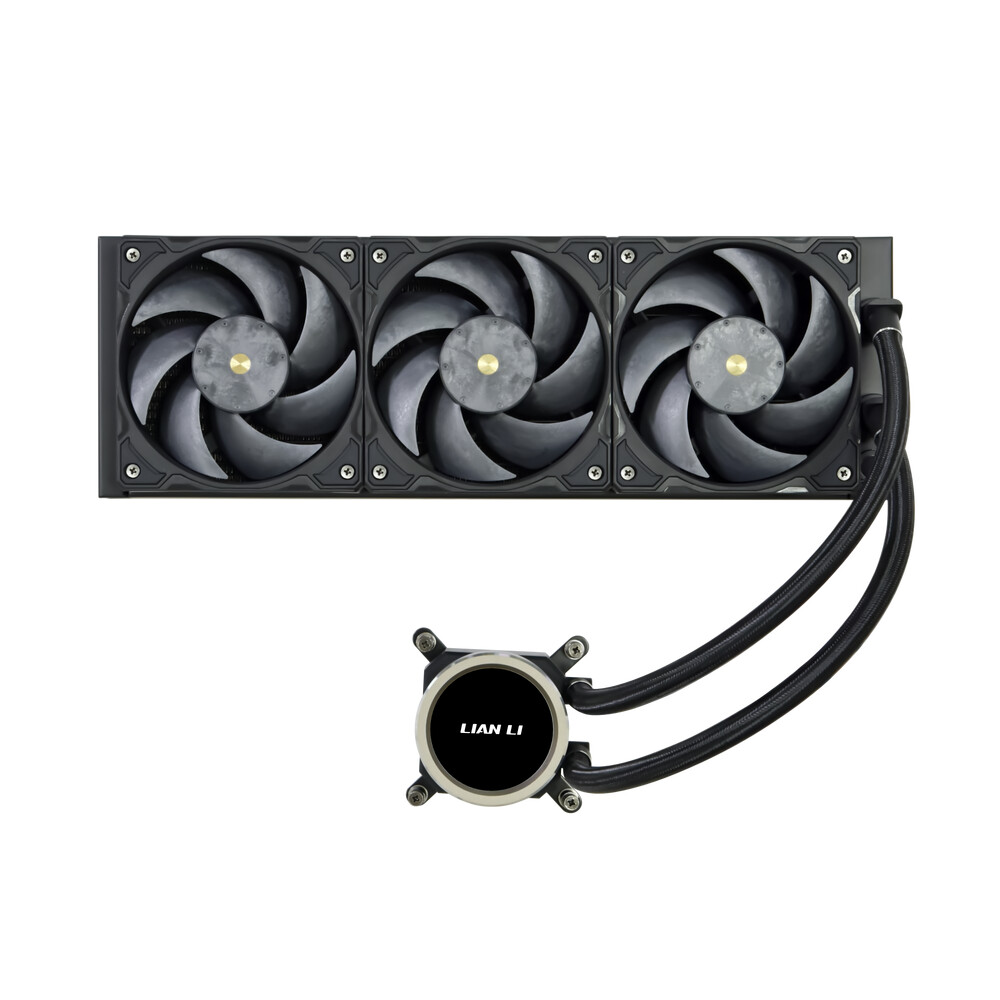

The GALAHAD II TRINITY PERFORMANCE is only available in a 360mm size. It features a wide radiator with a dual wave fin design for increased heat dissipation. The pre-installed Liquid Crystal Polymer fans can be daisy-chained using a single short cable hidden inside the fan frame. The 120mm fan has two modes: High for performance-oriented results and Low for noise-optimized results. The fans can be controlled via the included RPM switch controller or connected directly to the motherboard or AIO pump block for speed control. The system can be upgraded with the UNI FAN P28 Side ARGB kit for additional RGB elements.
Redesigned Pump Block
The GALAHAD II series features a redesigned pump block for improved performance. The copper cold plate has increased skived fin spacing to prevent debris buildup. The fin's height and thickness have been increased to compensate for the loss in fin density. A trench has been added to the skived fins for better coolant diffusion. The copper plate seal has been revised to reduce turbulence and increase water flow. The GALAHAD II TRINITY PERFORMANCE has a larger pump impeller and motor for higher speeds. The impeller has a 7-blade design for strong water flow.
Personalization
The pump cap of the GALAHAD II TRINITY series can be easily customized with the included swappable pump covers. Users can choose between the Duo Infinity cap, Sink Hole cap, and Dazzle cap, each offering different lighting effects. The lighting effects can be controlled via L-Connect 3.
Ease of Use
The GALAHAD II TRINITY series is designed for easy installation and customization. The radiator features 45-degree rotary fittings for convenient tube routing. The fittings can be rotated 360 degrees to adjust the tube's orientation. The series also includes a thermal paste control film and spreader for perfect thermal paste application.
The GALAHAD II TRINITY series is available for pre-order starting July 13th, 2023.
